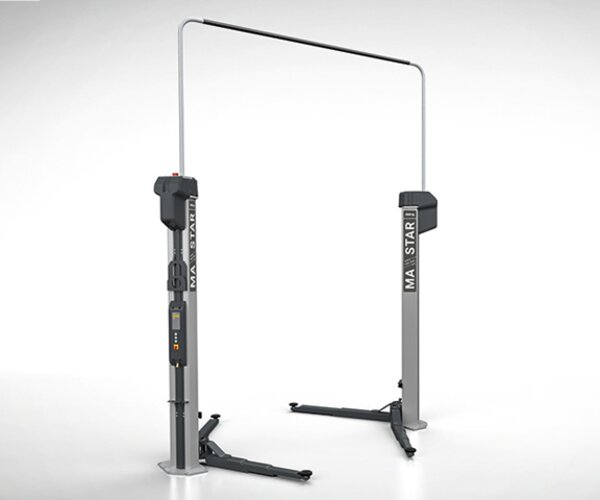

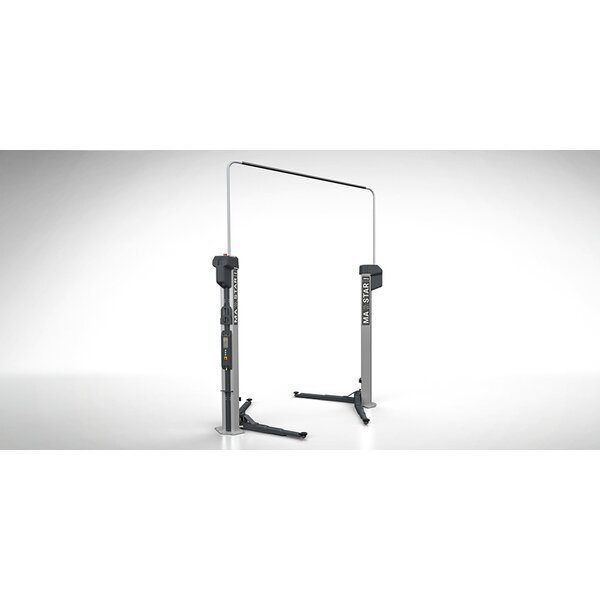

product details / scope of delivery

COMFORT version - options available
(colour/sports car support arms/special voltage)

  • RAL 5010 -


  • Load capacity 3500 kg
  • triple safety
  • Columns turned by 45° for wide opening at the vehicle
  • Asymmetrical support arms
  • Short support arms swivelling 180°
  • Variable installation width
  • High-quality powder coating:
    • Gentian blu, RAL 5010 (columns)
    • Anthracite grey, RAL 7016 (lifting carriages, support arms)

Scope of delivery:

  • 2 asymmetrical columns with operating unit
  • 4 asymmetrical support arms (2 double, 2 single telescopic)
  • Support disc plug-in system
  • Cable bridge
  • Spindle oil (0.5 l)
  • Operating instructions
  • CE Declaration of Conformity
  • Transport packaging


Sales documents

Technical Datasheet

Technical documentation

Operating Instructions
Product drawings

Technical Data

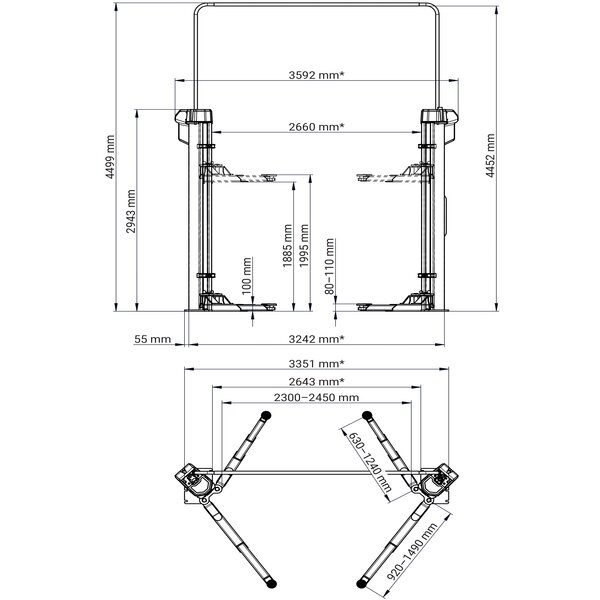

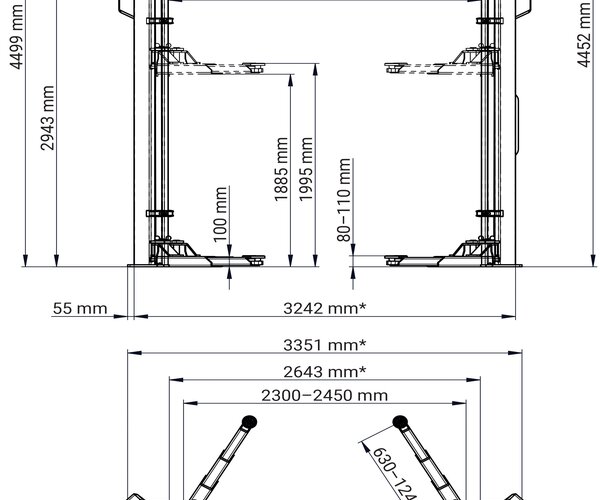

Technical data:

Load capacity CE3500 kg
Max. lifting height1995 mm
Lifting / lowering time (depends on load)approx. 40/40 s
Bottom clearance of the support arms100 mm
Adjustment range, support disc80 - 110 mm
Extension range, short support arms630 - 1240 mm
Extension range, long support arms920 - 1490 mm
Overall width*3592 mm
Outside base plates*3351 mm
Outside columns*3242 mm
Inside columns*2660 mm
Drive-through width2300 - 2450 mm
Column height2943 mm
Max. overall height (with cable bridge)4499 mm
Drive power2 × 3.0 kW
Power supply3/N/PE 400 V 50 Hz
FuseC16 A
Weight650 kg
Packaging dimensions (L x W x H)2900 x 1100 x 710 mm
Required concrete qualityC 20/25
Required thickness of concrete slab w/o screedmin. 180 mm

*Dimension based on recommended Drive-through width 2400 mm
