product details / scope of delivery
Description

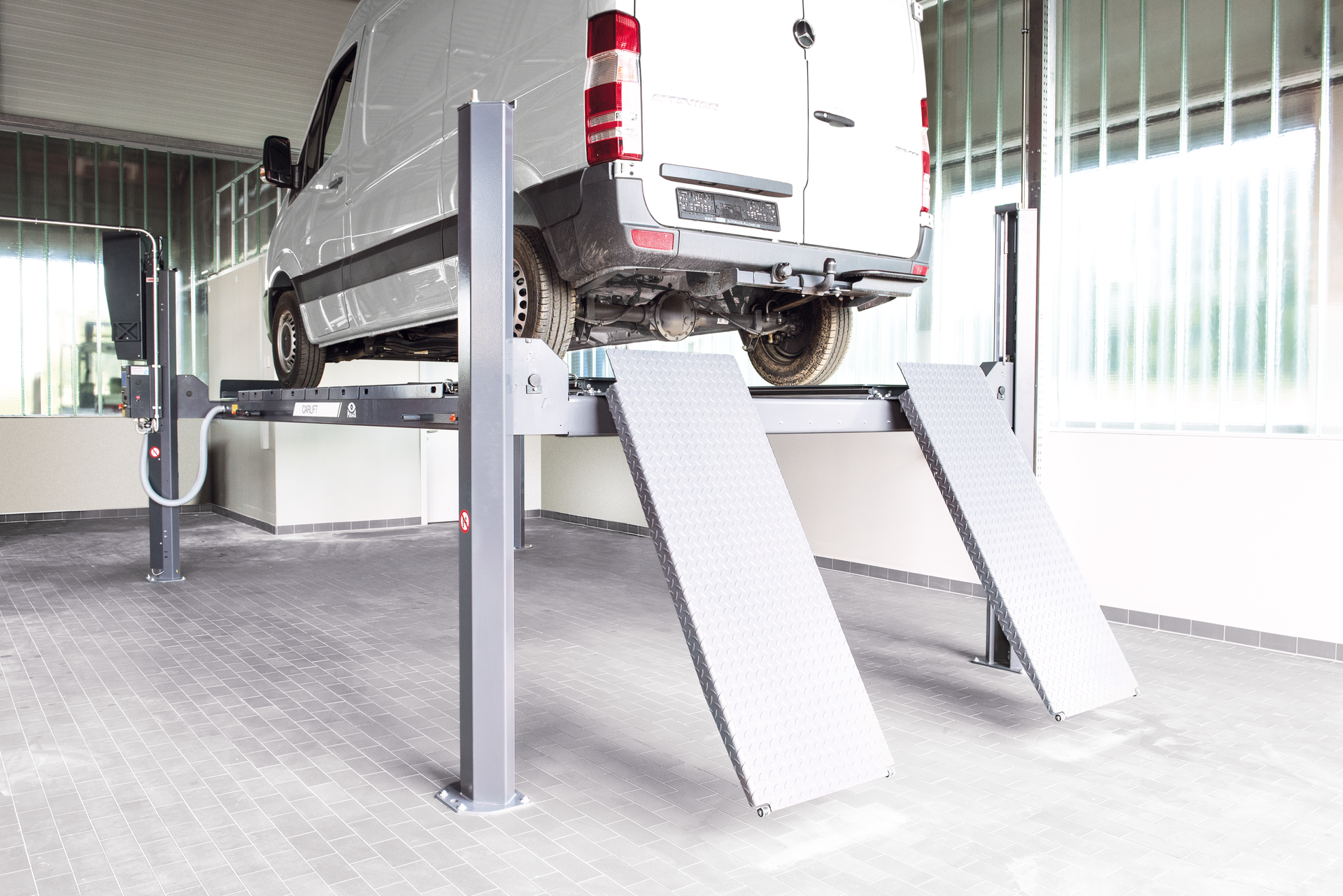

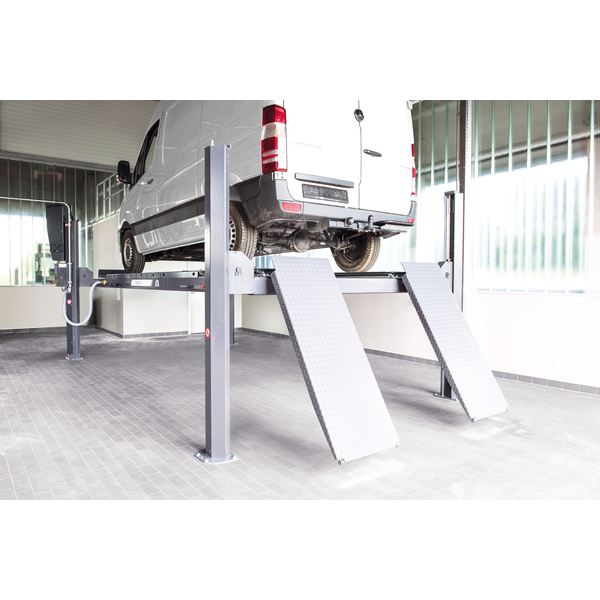

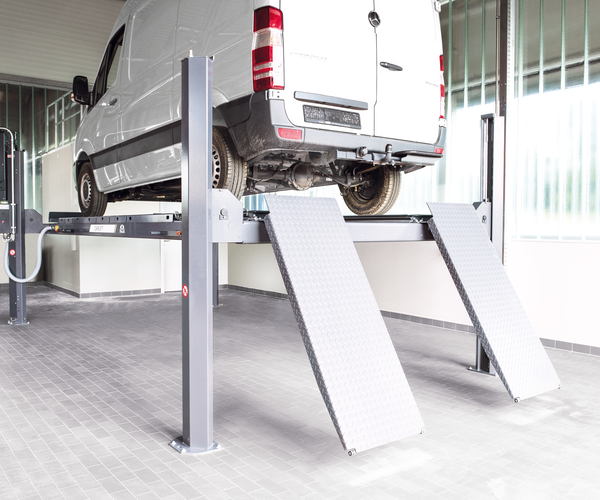

- Four post lift with electro-hydraulic drive unit for surface mounting
- Extra reinforcement plates welded onto runways for optimum stability
- Large runway width for all vehicle track widths
- One platform movable atthe side for vehicles with a small track (depending on equipment)
- Runways equipped with pre-integrated guide rail for axle lift
- Lowering device for chassis alignment included as standard, with precision-adjustable lock ladder and electromagnetically operated latches
- Low travel height for easy drive on
- Emergency DOWN feature in case of power failure
- Paint: high-quality powder coating:
- Window Grey, RAL 7040 (Columns)
- Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Traverses)
Scope of delivery:
- Four-post lift, Type CARLIFT II 4.0
- Operating box with control and hydraulic power unit
- Lockable main switch
- Settling device for wheel alignment
- 2 pieces drive-on ramps, 2 pieces roll bar
- Operating manual and inspection log book
- EC Declaration of Conformity CE
- Transport packaging
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure MAHA CARLIFT II
|
||
|
Brochure (Printable version) MAHA CARLIFT II print
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet CARLIFT II 4.0
|
||
|
Technical Datasheet (Printable version) CARLIFT II 4.0
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions CARLIFT II 4.0
|
||
Technical Data
Technical data:
| Load capacity CE | 4000 kg |
| Max. lifting height | 1965 mm |
| Lifting / lowering time (depends on load) | approx. 30/30 s |
| Total dimensions (L x W) | 5790 x 3450 mm |
| Drive-on height | 145 mm |
| Drive-on height with wheel-free jack | 175 mm |
| Drive-on height with setup for wheel alignment | 195 mm |
| Drive-on height with setup for wheel alignment | |
| and wheel-free jack | 225 mm |
| Platform dimensions (L (>&)> W) | 4400 x 630 mm |
| Platform length, optional | 4800 mm |
| Column width clearance | 2865 mm |
| Driving platform clearance | 750 - 1020 mm |
| Drive power | 2.2 kW |
| Power supply | 3/N/PE 400 V 50 Hz |
| Fuse gG | 16 A |
| Weight | 1400 kg |
| Hydraulic oil volume (not included) | 10 l |
| Packaging dimensions (L x W x H) | 4400 x 800 x 1200 mm |
