3M SE-402 VP 185057

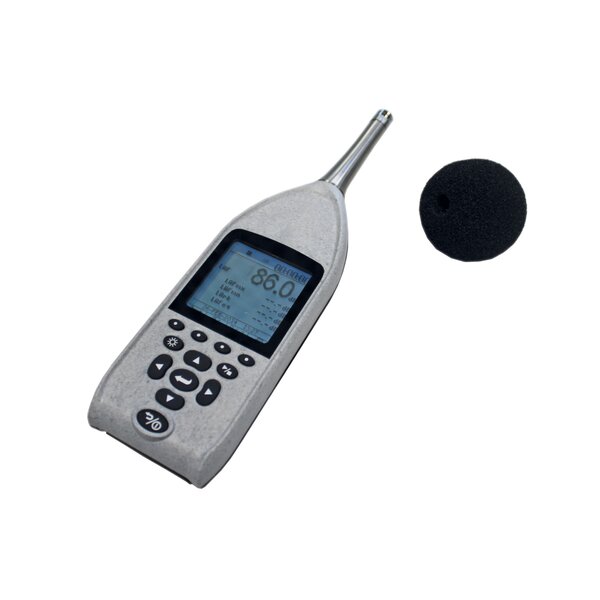

The 3M SE-402 of the quality category 2 is the ideal sound level meter for almost any acoustic environment. The frequency evaluation can be carried out in accordance with the characteristic curves A, C and Z and the time evaluation can be set to 'Fast' or 'Slow'. The ergonomically arranged keys and the clear digital display (resolution 0.1 dB) guarantee a high degree of user-friendliness.

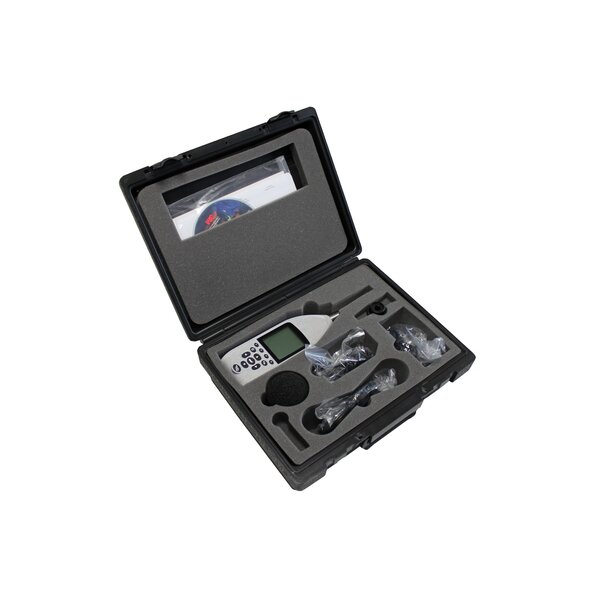

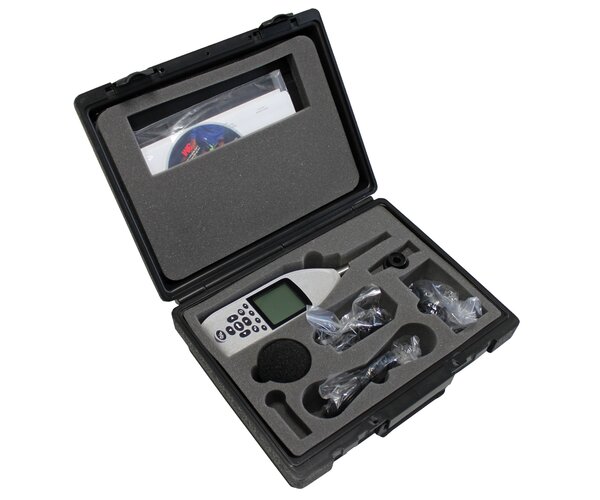

product details / scope of delivery

Specifications:

  • Measuring device, grade 2
  • Standards: ANSI S1.43-1997(R2007), ANSI S1.4-1983 (R2006), IEC 61672-1(2003), IEC 61010-1(2010), IEC 61000-4-2(2008), IEC 61000-4-3(2008)
  • Digital display with 0.1 dB resolution

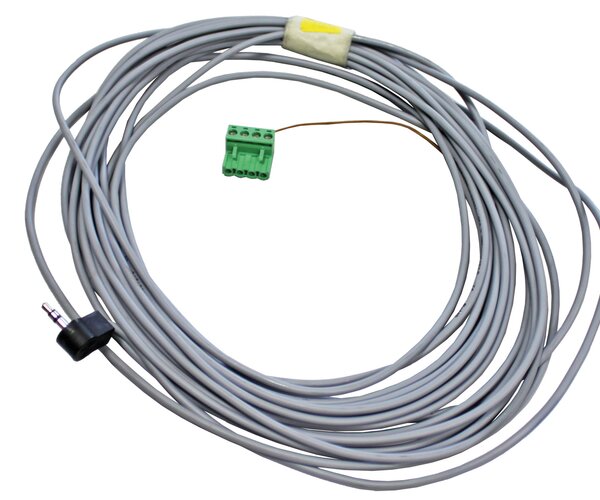

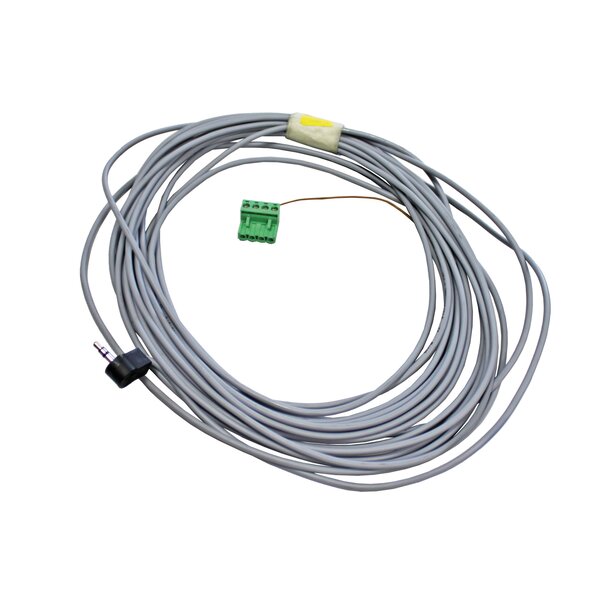

*Ports: AC/DC Output, USB

  • Frequency weighting: 'A', 'C', 'Z'
  • Meter response: Fast and Slow
  • System of Protection: IP65


Downloads

Sales documents

Technical Datasheet
Technical Datasheet 3M SE-402
DE EN
Technical Datasheet (Printable version) 3M SE-402
DE EN

Technical Data

Technical Data:

Measuring range30-140 dB
Temperature Range:
Operating temperature-10 °C...+50 °C
Storage-20 °C ..+60 °C
Battery-operatedLITHIUM 2500mAh AUFLADBAR
(AUFLADEN DER BATTERIE ÜBER USB PORT)
Dimensionsapprox. 71x284x33 mm (without microphone)
Weightapprox. 380 g
