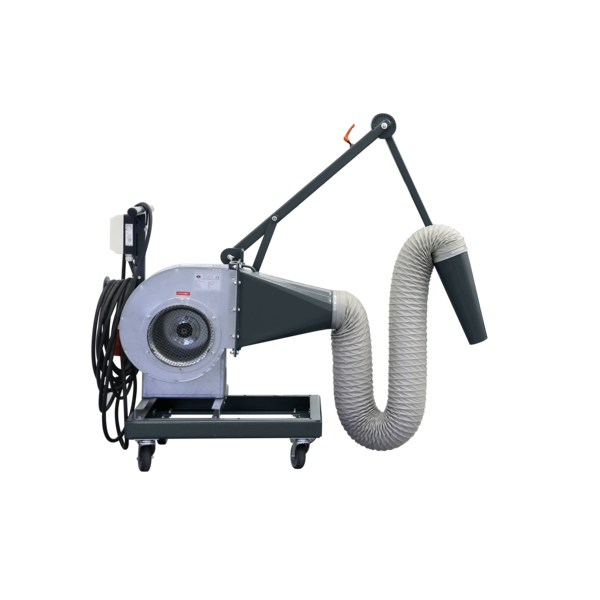

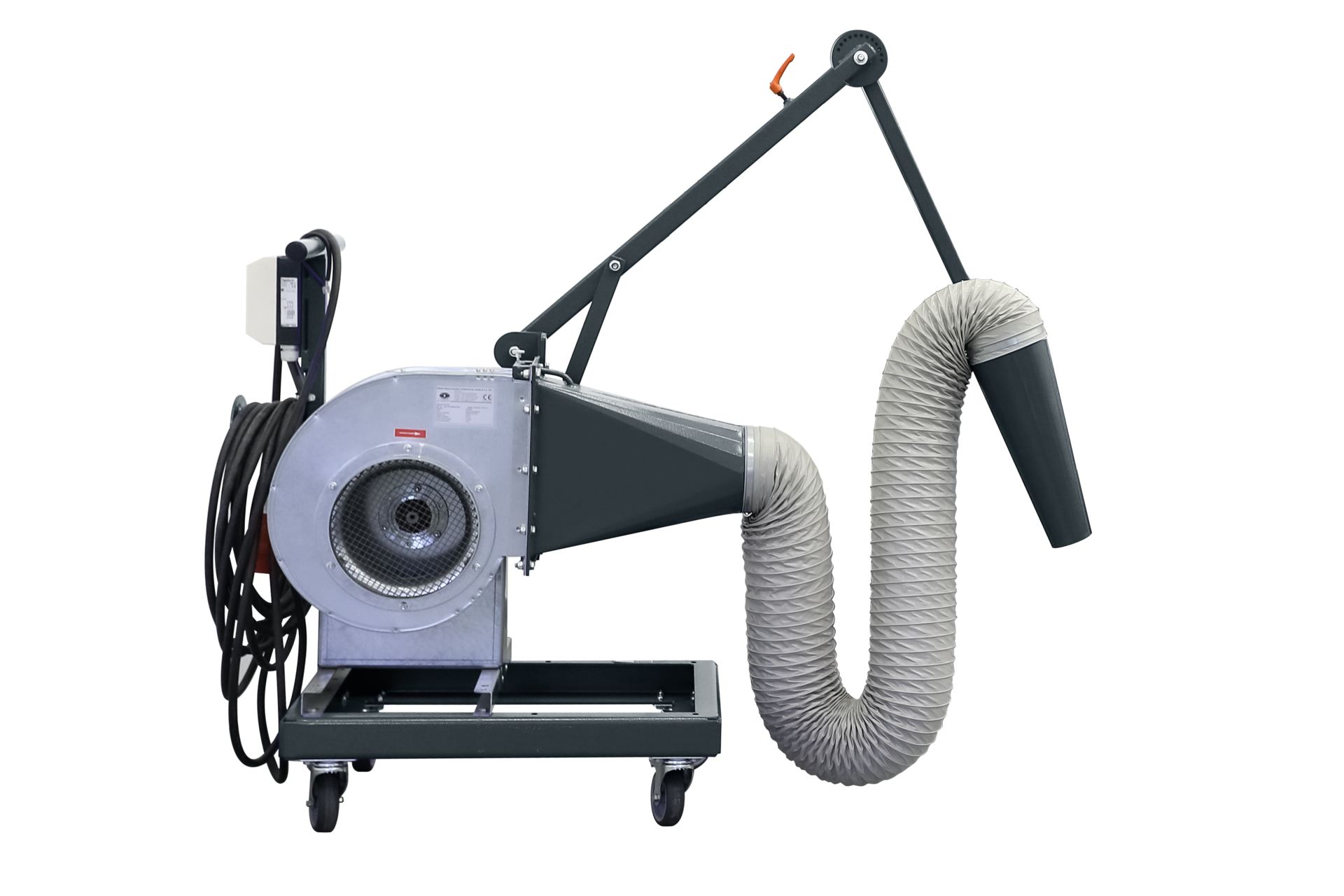

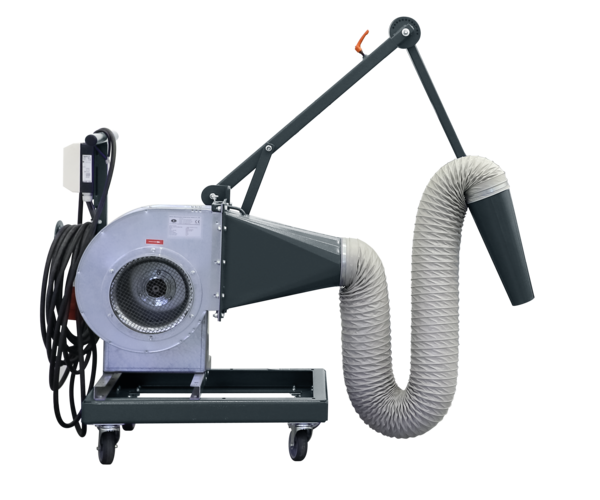

Auxiliary component blower VP 160009

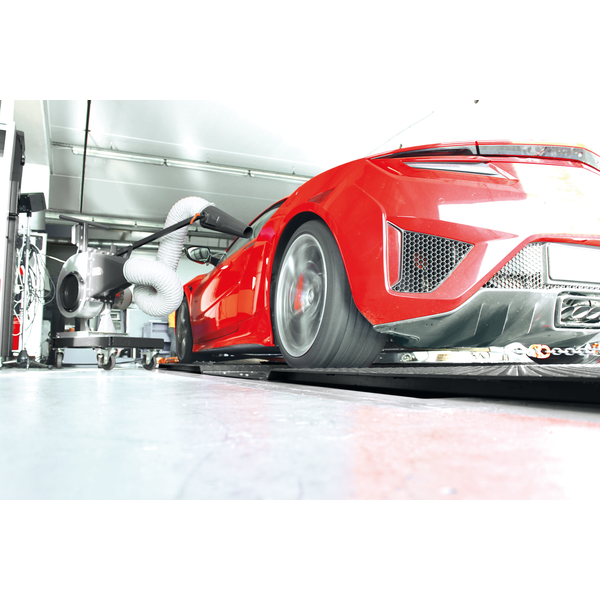

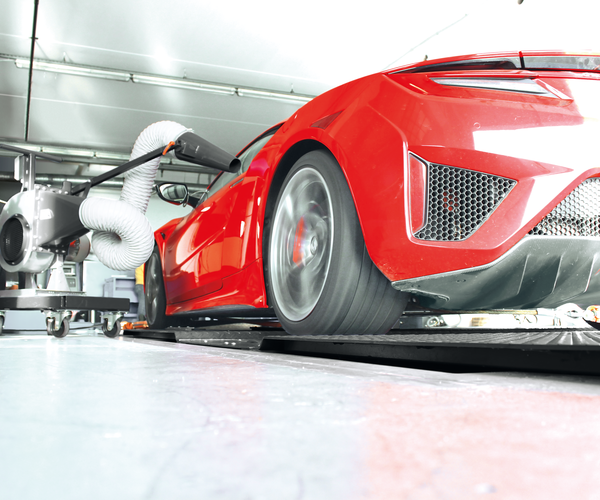

The moving auxiliary component blower is used for additional, targeted cooling of the intercooler, exhaust manifold, oil cooler and other areas of the vehicle. Because of its retractable and height-adjustable suspension, all sensitive vehicle areas can be easily reached and individually cooled.

product details / scope of delivery

Description:

  • Extendible height-adjustable brackets for specific cooling of sensitive vehicle areas
  • Additional targeted cooling of intercoolers, exhaust manifolds, oil coolers and other areas
  • Varnished with high-quality powder coating: Window Grey, RAL 7040

Downloads

Sales documents

Brochures
Brochure AIR
DE EN ES FR
Brochure (Printable version) AIR
DE EN ES FR
Technical Datasheet
Technical Datasheet Bauteilzusatzgebläse
DE EN
Technical Datasheet (Printable version) Bauteilzusatzgebläse
DE EN

Technical Data

Technical Data:

Volumetric flow540 m³/h
Max. outflow speed at the nozzle140 km/h
Motor power2.2 kW
Fuse16 A
Power supply3/N/PE 400 V 50 Hz
Total weight60 kg
Dimensions (H x W x L)1150 x 470 x 1650 (max. 2650) mm
Max. projection2000 mm
