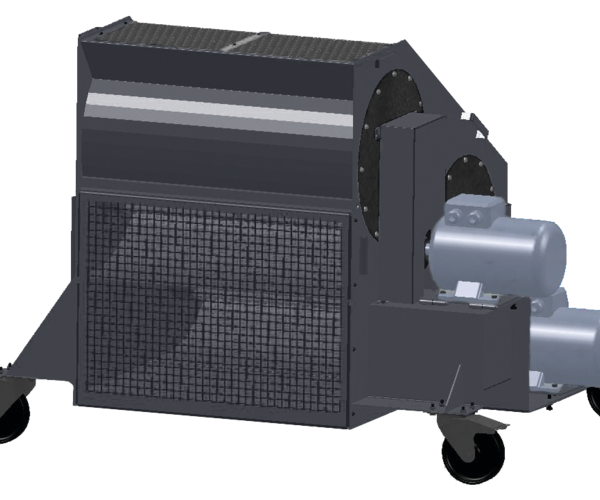

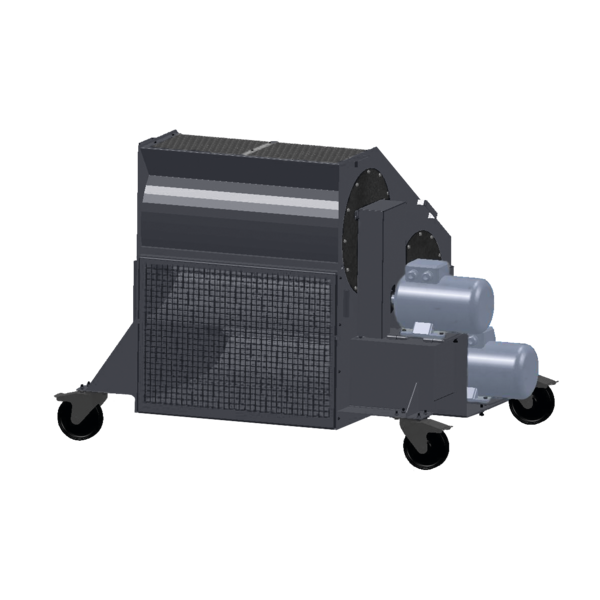

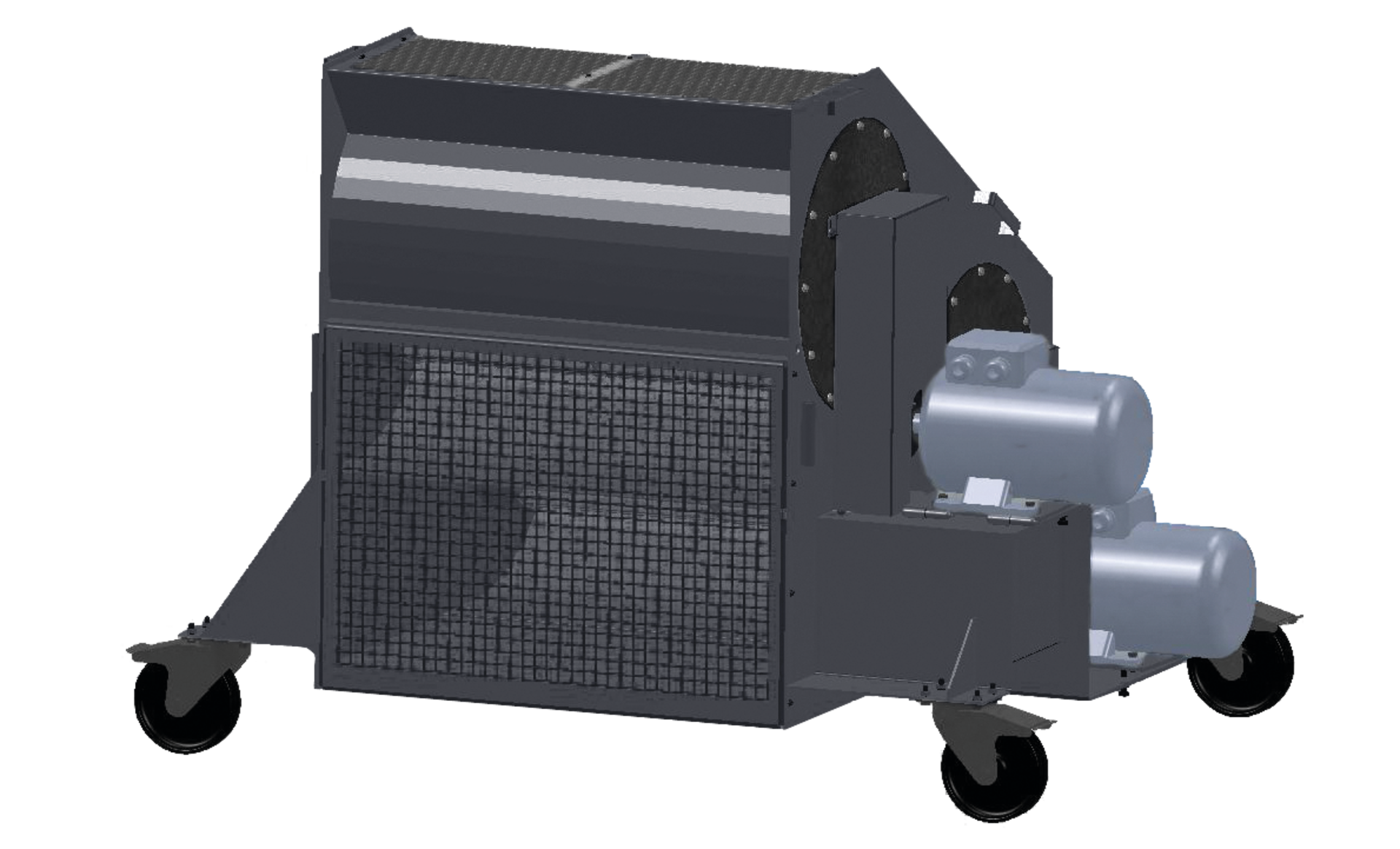

AIR 8 VP 160012

The extremely powerful radial air stream fan AIR 8 with wide outlet channel on different height levels is designed for vehicle cooling and prevents heat accumulation on vehicles. The air stream blower is designed for cooling cars and trucks and prevents damage to the vehicle and drive units.

product details / scope of delivery

Description:

  • Powerful universal air-stream fan for all cars and trucks
  • Wide exhaust passage at varying heights for the targeted air routing towards the vehicle radiator and underneath the vehicle radiator in order to prevent heat build-up
  • Prevents vehicle damage and overheating of the drive units
  • Varnished with high-quality powder coating: Window Grey, RAL 7040

Downloads

Sales documents

Brochures
Brochure AIR
DE EN ES FR
Brochure (Printable version) AIR
DE EN ES FR
Technical Datasheet
Technical Datasheet AIR 8
DE EN
Technical Datasheet (Printable version) AIR 8
DE EN

Technical Data

Technical Data:

Air powerapprox. 53000 m³/h
Airflow velocityapprox. 100 km/h
Motor power2 × 7.5 KW
Fuse50 A
Power supply400 V
Air outlet opening (L x W)890 x 260 mm
Air outlet height 1st / 2nd outlet205 / 570 mm
Weightapprox. 600 kg
Dimensions (H x W x L)1335 x 1227 x 1640 mm
