Technical Data

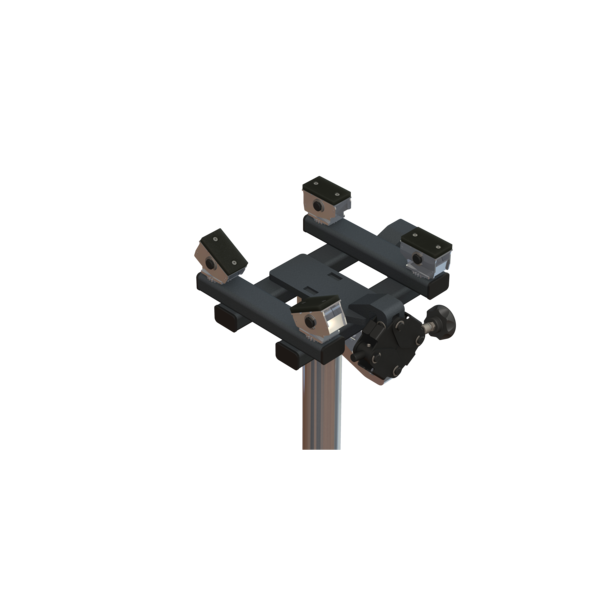

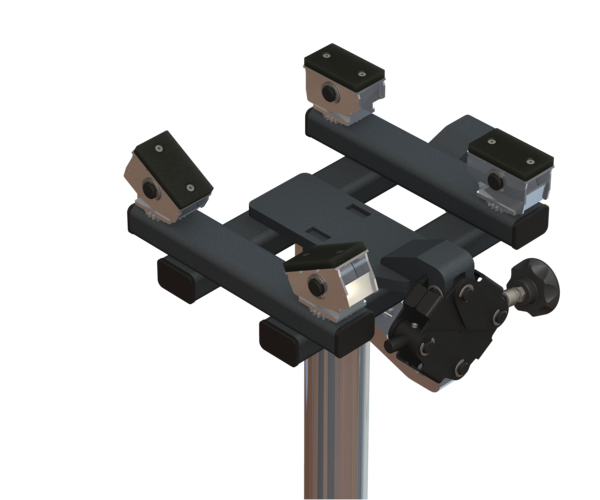

Size is optimised for a variety of gearboxes
Base support:
- To facilitate access to difficult mounting positions, the base supports have been designed as a frame construction
- The assemblies picked up can be easily fixed and secured with the tensioning bands included
- The eyelets required for the tensioning bands are easy to access
Tilt adjustment:
- Smart scissor spindle adjustment of the gear tool guarantees a very precise, sensitive and smooth positioning of the assembly even in difficult working environments
- The two axes of the GMT 800 pivot +10° and +15°
- Adjust using the manual turning handle supplied or else using a ratchet screwdriver
- Tilt can be adjusted also under load
Supports:
- Self-adjusting flat swivel supports with 90 x 50 mm rubber pads and a tilting clearance of 30° for adjustment to the gearbox
- Included: 4 pcs
Technical data:
| Support range | 374 x 399 mm |
| Overall dimensions (L x B x H) | 61 x 381 x 211 mm |
| w/o platform supports | |
| Load capacity | 800 kg (central support) |
| Weight w/o accessories | 27 kg (33 kg with flatsupports) |
| Support diameter | |
| with safety support inside/outside | 45/80 and 45/70 mm |
- in case the gearbox is lifted outside of centre of gravity
