product details / scope of delivery

Description:

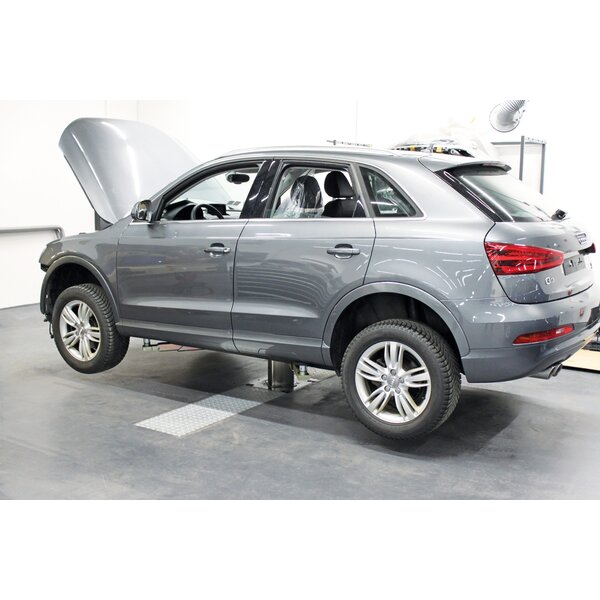

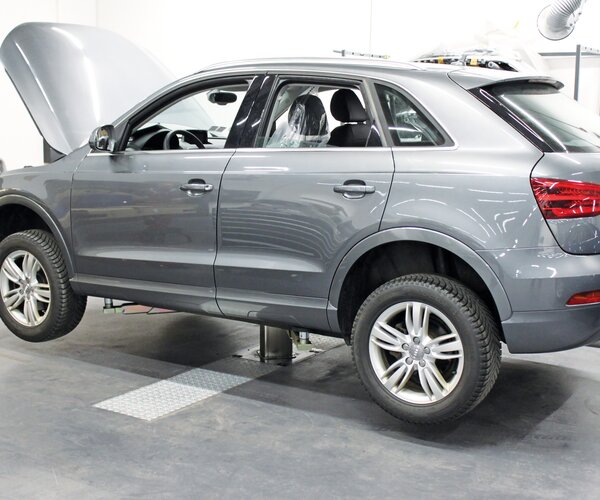

One-post inground lift with swing arm X-supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

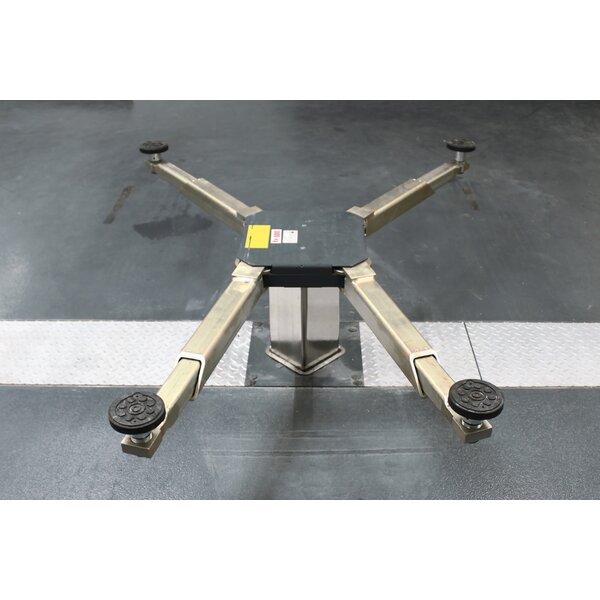

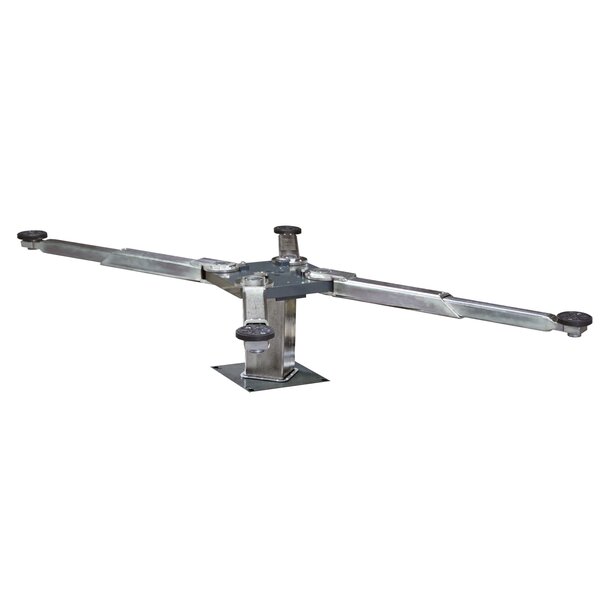

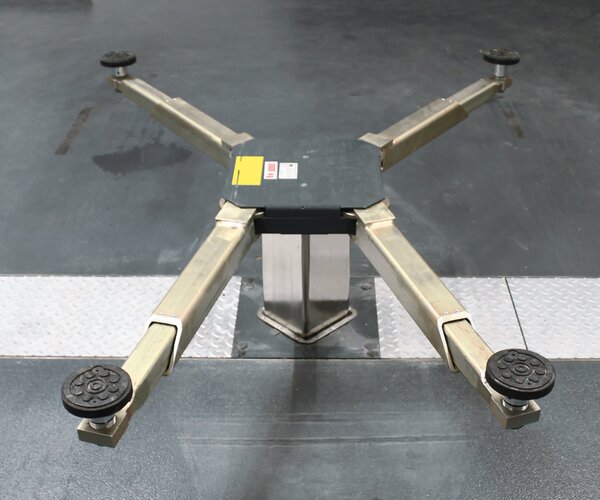

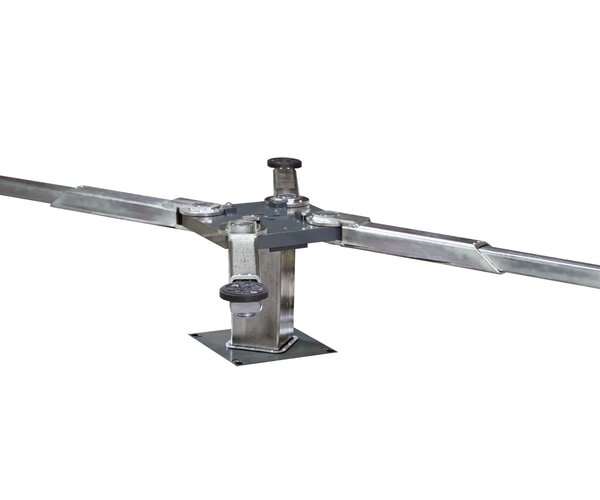

Swing arm support (X):

  • Optimum vehicle pick-up with maximum accessibility,

especially for repairs from outside in the sill or

  • engine area
  • Double telescopic swing arm support for stepless adjustment
  • Swing arm extensions with min. height of 104 mm
  • Precise pick-up of vehicles due to height-adjustable support discs with thread and plug-in system
  • Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehicle fixation in the product range
  • Comes standard with fullyrubberised support plate without metal parts to exclude electrical conductivity
  • Automatically engaging support arm lock


SQUARE lift unit:

  • Outstanding rigidity and optimum safety thanks to torsion-resistant square posts
  • Low-noiseoperation due to very quiet motor in the installation box
  • Optionally usable with mineral organic oil with high durability
  • Electronic lift control with no-contact, wear-free limit switches and visual error display
  • Very smooth running due to sliding, long-life special nickel coating on posts with robust, low-maintenance post guide
  • Protected internal hydraulic safety cylinder guarantees lengthy service life
  • Double cylinder lifting unit for redundant operation
  • High lifting/lowering speeds are guaranteed in a load-dependent range of 20 ýÿ 26 seconds
  • Integrated, battery-operated emergency lowering
  • Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system


Scope of delivery:

  • Swing arm support (X) with swing arm carrier, anthracite grey (RAL 7016), and galvanised swing arm extensions
  • Lifting unit with double cylinder and clamping system
  • Cable and fastening material
  • Installation box/frame not included in scope of delivery
  • Emergency-down cable for connection to the control box
  • Control unit with 10 m control cable (oil flex cable)
  • Lockable main switch
  • Pinch point protection by CE stop instead of foot deflector
  • Operating instructions
  • EC/UKCA Declaration of Conformity


Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Load capacity CE3000 kg
Adjustment range of support discs78 - 109 mm
Installation height104 mm
Lifting height max.1940 mm
Installation depth2382 mm
Post dimensions, square180 mm
Lifting/lowering time, load-dependentapprox. 28/20 s
Hydraulic oil quantity (not incl. in delivery) approx. 28 l
Oil qualityHLP-D 22
Operating pressure140 bar
Recommended installation boxVZ 972554
Control unit (H x W x D)320 x 220 x 120 mm
Drive power3.0 kW
Fuse protection gG16 A
Power supply3/N/PE 400 V 50 Hz
