product details / scope of delivery

Description:

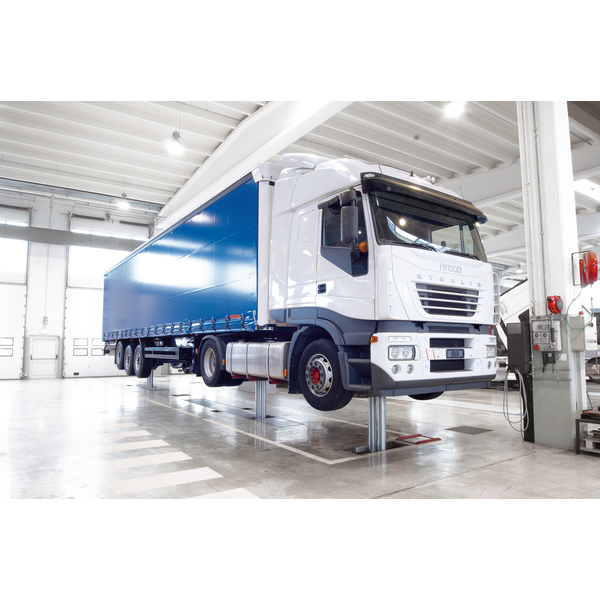

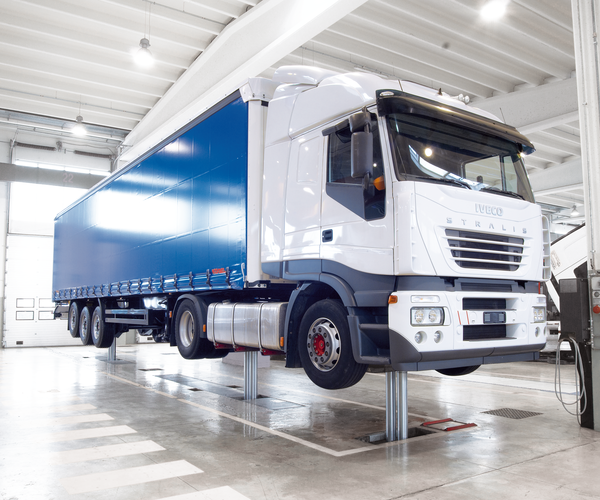

Multi-post system with three lifting units, two of which are
moveable, with surface-mounted vehicle support and
narrow roller cover; modular design

  • Flexible and custom-selectable post distance thanks to modular designof individual installation boxes
  • Torsion protection through rigid dual post system
  • Optimal operational safety thanks to redundant system with two separate hydraulic circuits and additional electronic pressure/leakage monitoring as standard
  • Corrosion-resistant hydraulic piston; self-lubricating as piston dips into hydraulic oil with every lift
  • Optional use of biodegradable mineral-based oil with long service life
  • Space-saving medium-pressure hydraulic unit, mounted on the lifting units, travels with the moveable lifting unit (no hose routing or movement within the installation box)
  • Low-noise operation thanks to ultra-quiet motor in the installation box
  • Robust roller cover systemwith electric travel drive, made from pivot bearing aluminium profiles with non-slip surface
  • Narrow roller cover with surface-mounted support, can be driven over with wheel loads of up to 4.0 t
  • Electronic synchronous control oflifting units for uniform vehicle lifting (as per EN 1493), independent of varying vehicle pick-up point heights, and with robust inductive height sensor system
  • Two operating panels (incl. text display) for easy operation of central control and programming unit when moving the lifting units / lifting the vehicle
  • High operational flexibility through different operating modes, including group and individual options, enables efficient work performance
  • Position memory programme allows pick-up positions of up to 40 vehicles to be stored and recalled at any time
  • Cable-connected remote control facilitates and speeds up exact positioning of vehicle take-up (20 m cable)
  • Simple, integrated,pneumatically operated emergency lowering function; also usable in cases of power failure


Scope of delivery:

  • Three lifting units, two of which are movable, with S roller cover
  • Support crossbar in anthracite grey (RAL 7016)
  • 1 setof vehicle support sliders for forged axles with synthetic overlay (VZ 972343)
  • 2 sets of hinged vehicle support sliders, height 220 (280) mm (VZ 972340)
  • Control cabinet and portable operating panel
  • Pre-assembled cable harnessesper lifting unit, length 30 m
  • Wiring and mounting materials
  • Installation box/installation frame not included
  • Lockable main switch
  • Operating instructions
  • CE declaration of conformity


Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

CE load capacity42000 kg
Load capacity per lifting unit800 - 14000 kg
Max. lifting height2050 mm
Sliding post / fixed post
installation depth2523 / 2723 mm
Moveable lifting unit travel range4020 mm
Support cross-beam width1000 mm
Post diameter2 x 125 mm
Roller cover traversable with wheel load4000 kg
Roller cover width630 mm
Roller cover materialAluminium
Lifting time / lowering time,
load-dependentapprox. 60 / 60 s
Hydraulic oil volume (not included)approx. 195 l
Operating pressure70 bar
Control unit (H x W x D)800 x 800 x 300 mm
Drive power13.0 kW
gG Fuse35 A
Power supply3/N/PE 400 V 50 Hz
