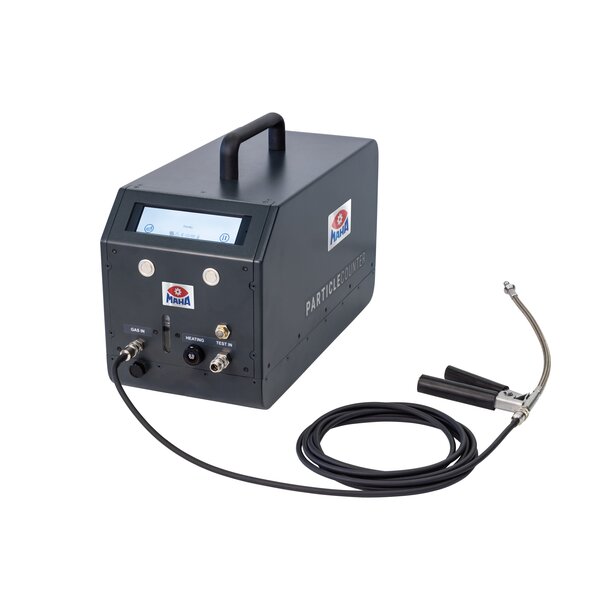

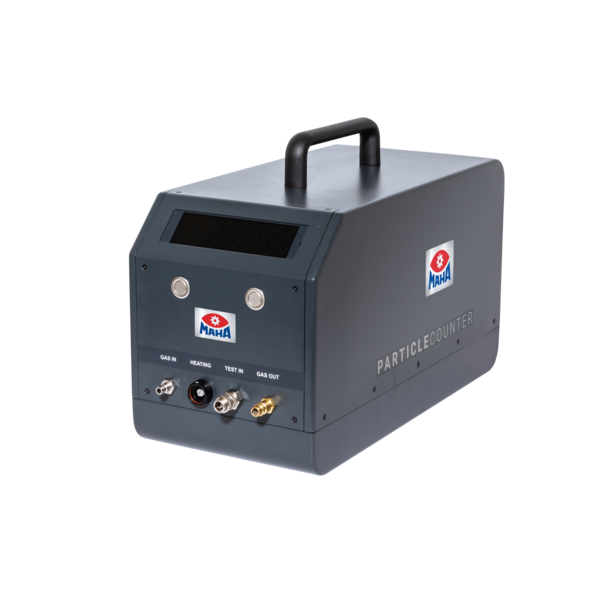

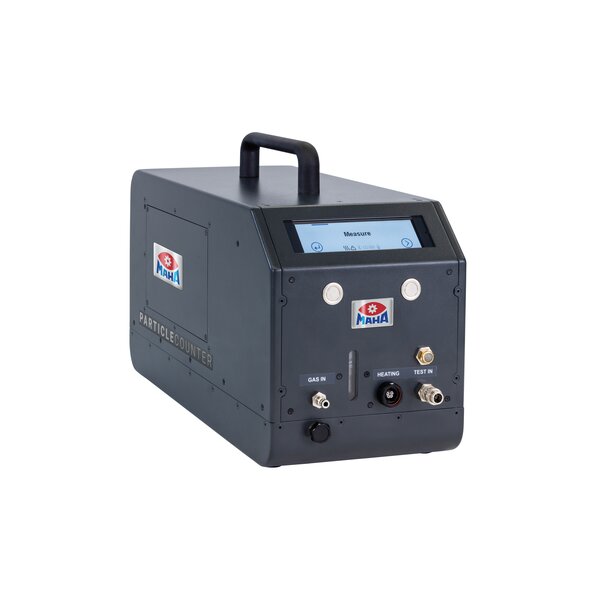

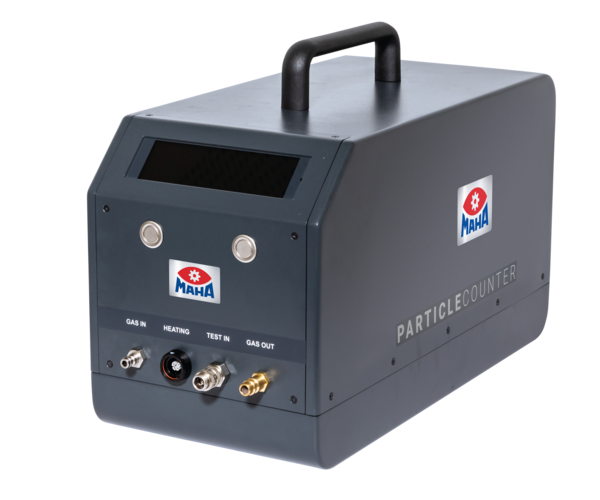

PARTICLE COUNTER VP 135046

With the PARTICLE COUNTER emission tester, you can really count every particle. Compact, rugged design, clearly readable display, rapid readiness for measurement and precise measurement results are the distinguishing features of the MAHA particle counter.

product details / scope of delivery

Description:

  • Advanced Diffusion Charging measurement principle
  • Particle counter with integrated display unit

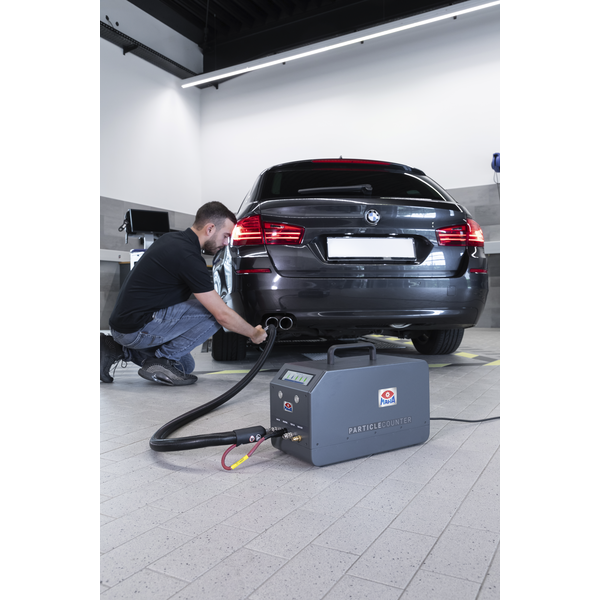

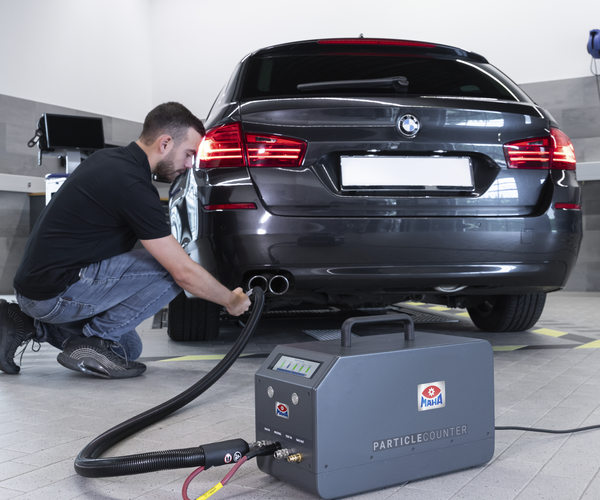

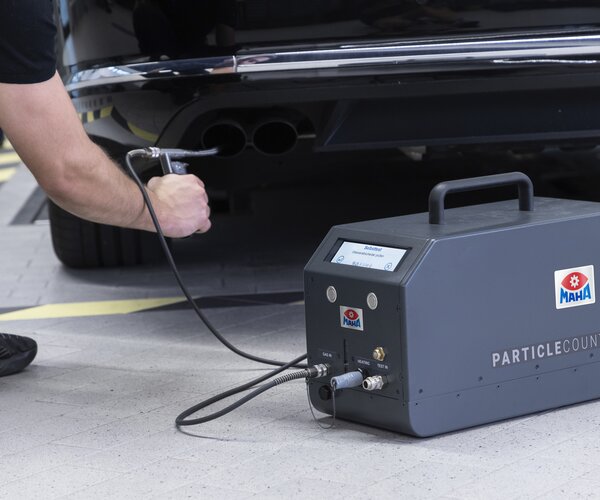

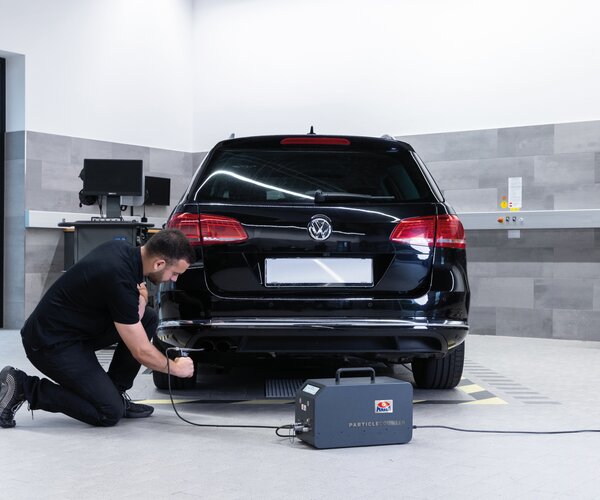

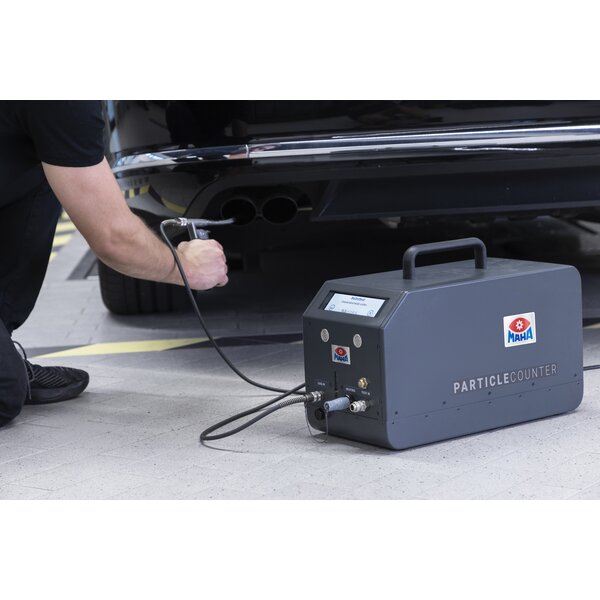

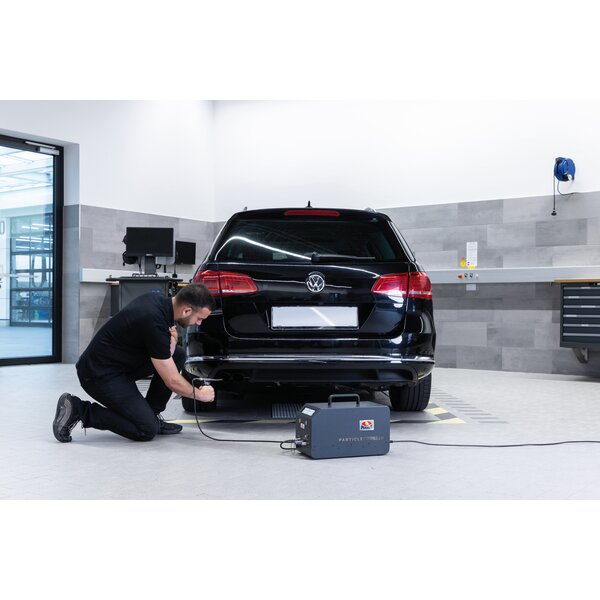

  • Time-saving and simple examination and diagnostics of particle count via partial flow method
  • Low maintenance
  • No consumables
  • USB and Bluetooth interfaces
  • Heat-up time <(><<)> 4 min.
  • DAkks-conform calibration acc. to ISO 17025 via EWR MESSGERÄTE GmbH


Options:

  • Connection to MES 7.51 (for Germany)


Scope of delivery:

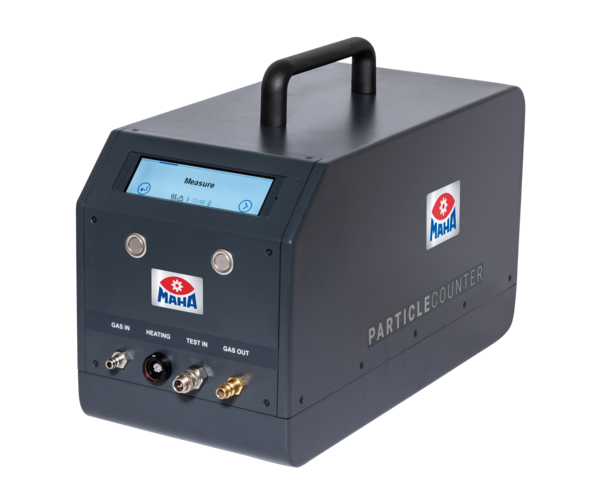

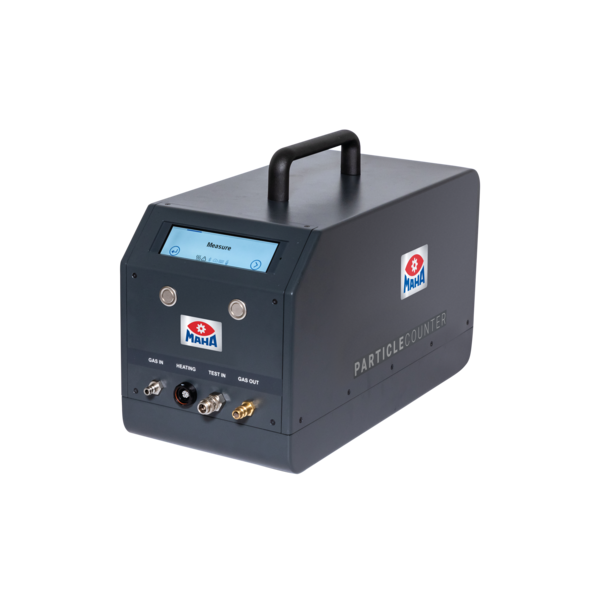

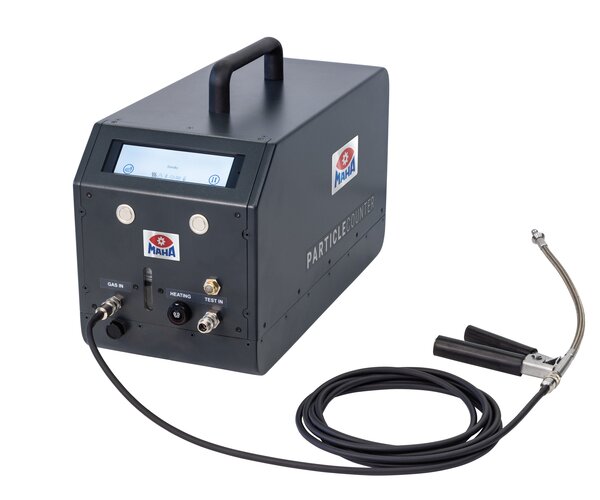

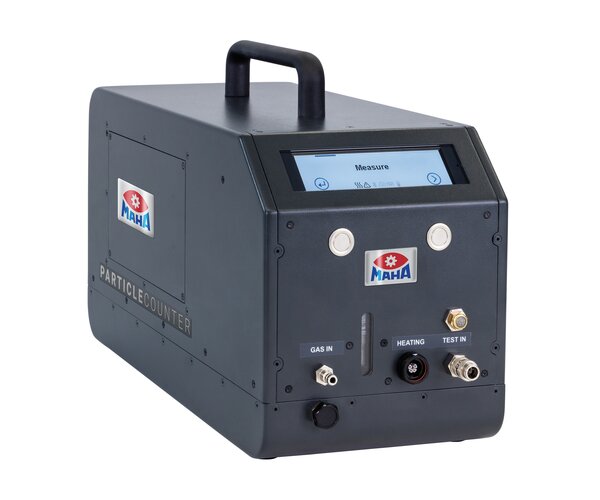

  • Basic particle counter unit in high-quality metal casing
  • Integrated display unit with keypad
  • USB interface
  • Bluetooth interface
  • Packaging included


Downloads

Sales documents

Brochures
Brochure Emissions Diagnosis Systems
DE EN
Brochure (Printable version) Emissions Diagnosis Systems
DE EN
Technical Datasheet
Technical Datasheet PARTICLE COUNTER
DE EN
Technical Datasheet (Printable version) PARTICLE COUNTER
DE EN

Technical Data

Technical data:

Measurement principleAdvanced Diffusion Charging
Heat-up time of measurement cell<(><<)> 240 s
Dimensions (LxWxH)505 x 210 x 310 mm
Weightapprox. 8.5 kg
Power supply110-230 V/50/60 Hz
Measurement range0...10.000.000 #/cm3
Volatile particlesRemoving Efficiency > 95%
Efficiency23nm 5%: 0.2 - 0.6
.50nm 5%: 0.6 - 1.3
.70nm 5%: 0.7 - 1.3
Error (absolute)10000#/cm3
Error (relative)75% (of measured value)
Measurement frequency1 Hz
