product details / scope of delivery

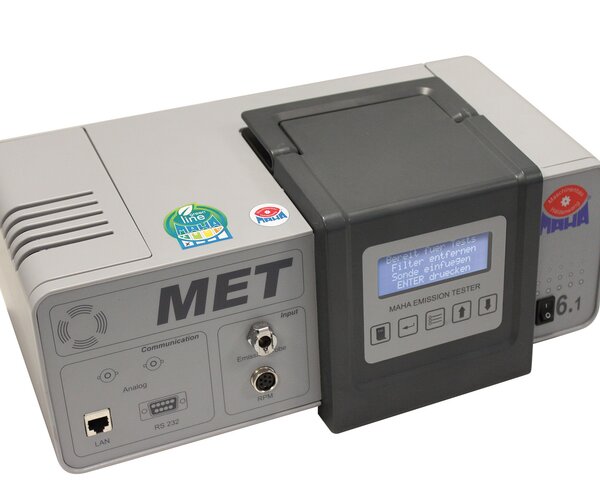

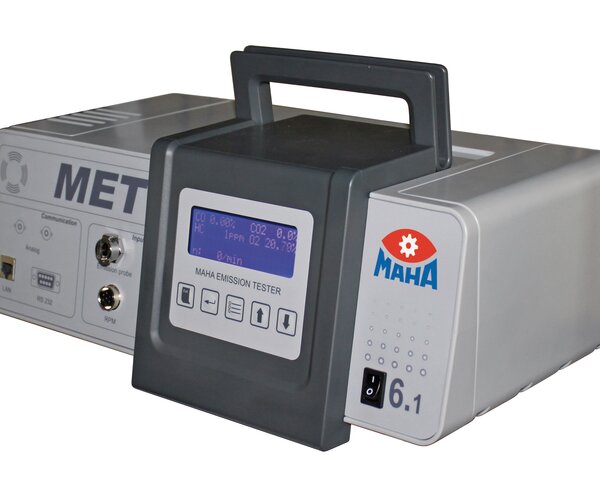

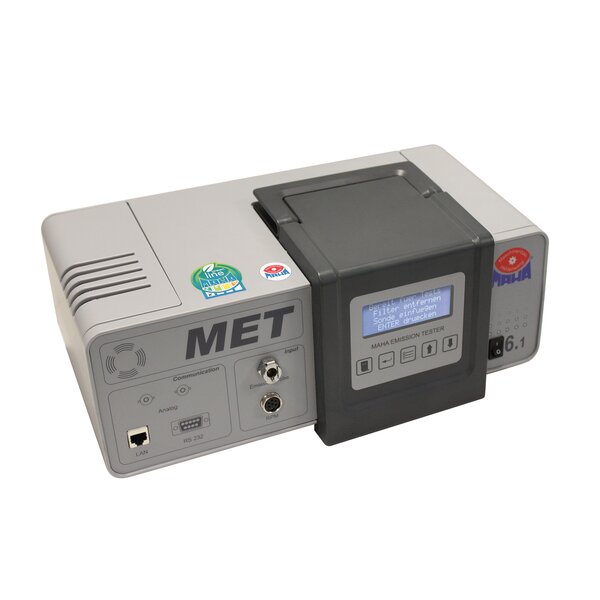

- Emission tester stands out due to limited weight and compact design
- Short warm-up time, quick measurement readiness
- Accurate analysis of gas components HC, CO, CO2, O2 with lambda value calculation
- Intuitive operation, clearstructure in emissions testing process as set out in current guidelines 5 enable minimum cycle times
- Varied and simple network connection options LAN / WLAN (optional)
- The MAHA VCI makes EOBD analysis easy
- Innovative method for separation of condensed water thanks to active water separator
- MID type approval
- Emission testing of CNG, LPG and petrol engines possible
- Options:
- W-LAN interface
Scope of delivery:

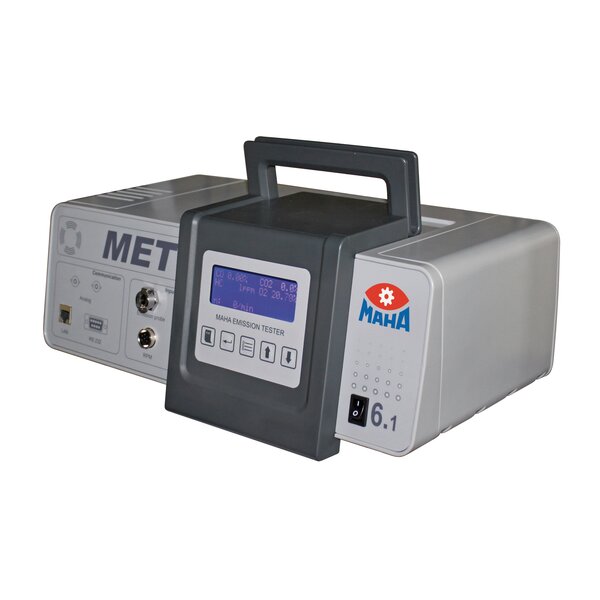

- Basic device (gas analyser) in high-quality synthetic casing with integrated display unit and keypad
- Steel mesh emission probe, 600 mm, probe tubing 8 m
- LAN interface with LAN cable
- Power supply unit 110V - 230V, 50/60Hz
- Transparent drain hose for condensed water withcollecting tank
- Main filter, zero filter and condensate filter
- Electrochemical O2 sensor
- Trigger tongs for MET 6.1 and 6.3 for inductive RPM measurement at ignition cables
- 2 replacement filters, 2 replacement seals
- Measurement software for continuous measurement without country-specific test procedure
Technical Data
Technical Data:
| Measurement principle: | |
| infrared spectrometry | HC, CO, CO2 |
| Measurable gases | HC, CO, CO2, O2 |
| Electrochemical detection | O2 |
| Flow rate | 3.5 l/min |
| Operating conditions: | |
| Temperature | 0°C to 45°C |
| Height | -100 m to +3000 m |
| Power supply | 110-230V 50/60 Hz |
| On-board voltage connection | 10-30 V, DC |
| Accuracy class | 0 (OIML) |
| Dimensions (L x W x H) | 406 x 225 x 160 mm |
| Weight | approx. 4.6 kg |
| Measurement range / measured value resolution (max.): | |
| CO | 0-15 % Vol. / 0.01 |
| CO2 | 0-20 % Vol. / 0.01 |
| HC | 0-9999 ppm / 0.1 |
| O2 | 0-25 % Vol. / 0.01 |
| Lambda (calculated) | 0.5-9.99 / 0.01 |
