product details / scope of delivery
Description:
- Short warm-up time ensures rapid readiness for measurement
- recise analysis of gas components HC, CO, CO2, O2 with lambda value calculation
- Time-saving and trouble-free testing and diagnosis of smoke opacity/particle concentration w. partial flow method during free acceleration or under load of engine
- Rapid emission test procedure
- Intuitive operation, clear emission test structure
- Maintenance-friendly thanks to easy accessibility
- Future-proof with cutting-edge technology
Scope of delivery:
- Gas analyser basic device in high-quality metal casing
- Integrated display unit
- Exhaust gas sampling probe 600 mm, 6000 mm probe hose
- Opacimeter basic device in high-quality plastic casing
- Integrated display unit
- Exhaust gas sampling probe 600 mm, 2000 mm probe hose
- Bluetooth interface, USB connection optional
- AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
- Condensate bottle 500 ml
- OBD-Tool

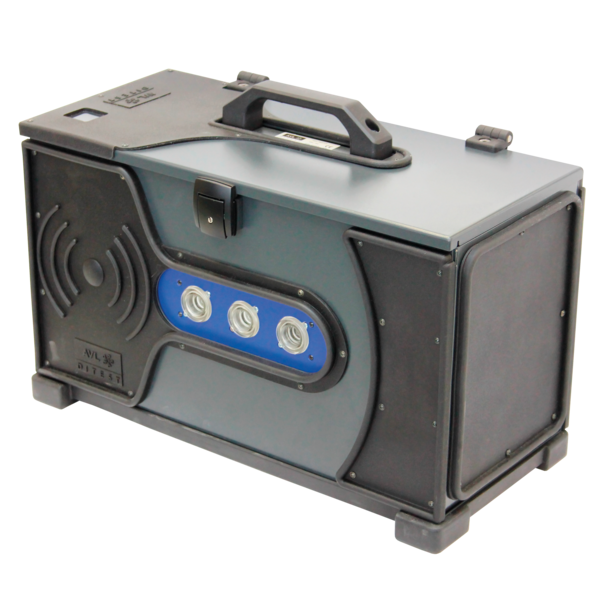

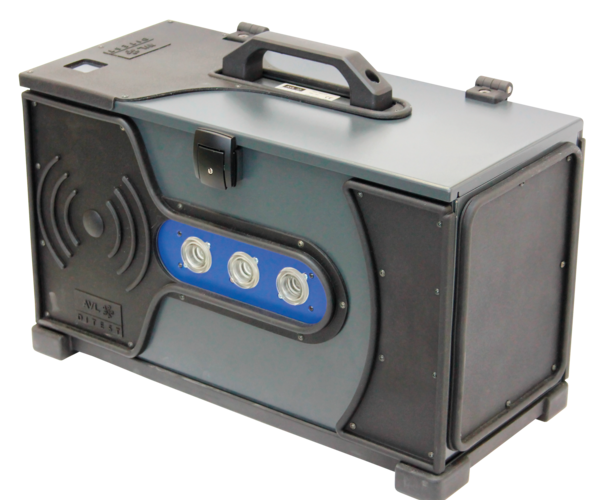

- Mobile, sturdy transport unit
Technical Data
Technical Data:
Gas Analyser
Measurement principle: | |
infrared spectrometry | HC, CO, CO2 |
Measurable gases | HC, CO, CO2, O2 |
Electrochemical detection | O2 |
Operating conditions: | |
Temperature | 5°C to 40°C |
Power supply | 110-230V 50/60 Hz |
Accuracy class | 0 (OIML) |
Dimensions (L x W x H) | 344 x 252 x 85 mm |
Weight | approx. 2.2 kg |
Measurement range / measured value resolution (max.): | |
CO | 0-15 % Vol. / 0.01 |
CO2 | 0-20 % Vol. / 0.01 |
HC | 0-9999 ppm / 0.1 |
O2 | 0-25 % Vol. / 0.01 |
Lambda (calculated) | 0.5-9.99 / 0.01 |
Opacimeter
Measurement principle | absorbance measurement |
Operating conditions: | |
Temperature | 5°C to 40°C |
Power supply | 110-230V 50/60 Hz |
Dimensions (L x W x H) | 395 x 136 x 285 mm |
Weight . | approx. 3.5 kg |
Maximum exhaust gas temperature | 200°C |
Measuring range, opacity | 0-99.9% |
Resolution, opacity | 0.1% |
Measuring range, absorption coefficient | 0-9.99 m-1 |
Resolution, absorption coefficient | 0.01 m-1 |
Transport Unit:
Power supply | 110-230V 50/60 Hz |
Dimensions (L x W x H) | 535 x 320 x 240 mm |
Weight . | approx. 15 kg |
