Description of the MBT 4200 LON:
Test lane-enabled roller brake tester with multi-analogue
display for lorries with an axle load of up to 13 t

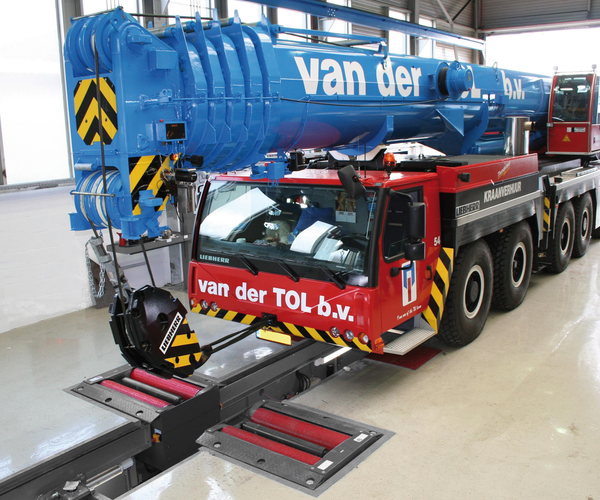

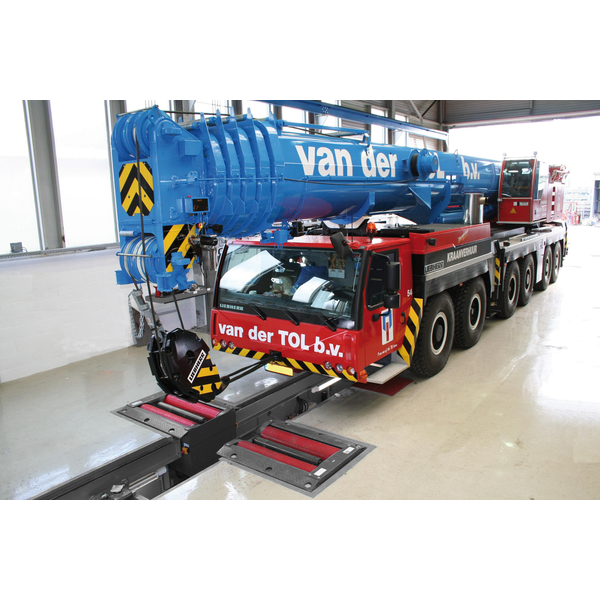

  • Divided design supplied as standard for installation in a working pit enables a high level of flexibility with regard to the area of use
  • The dimensions offer the best testing opportunities for standard cars and lorries

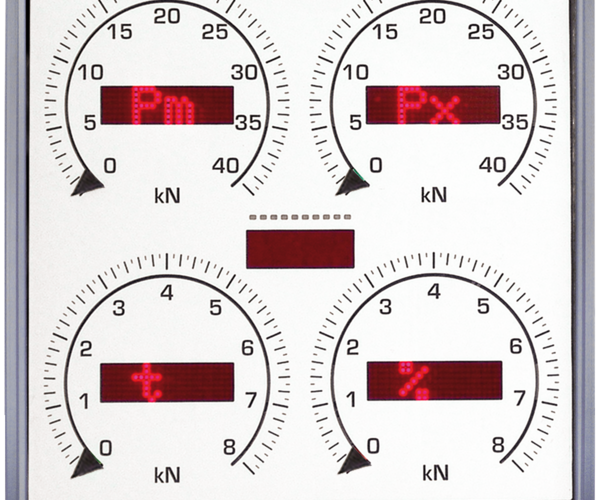

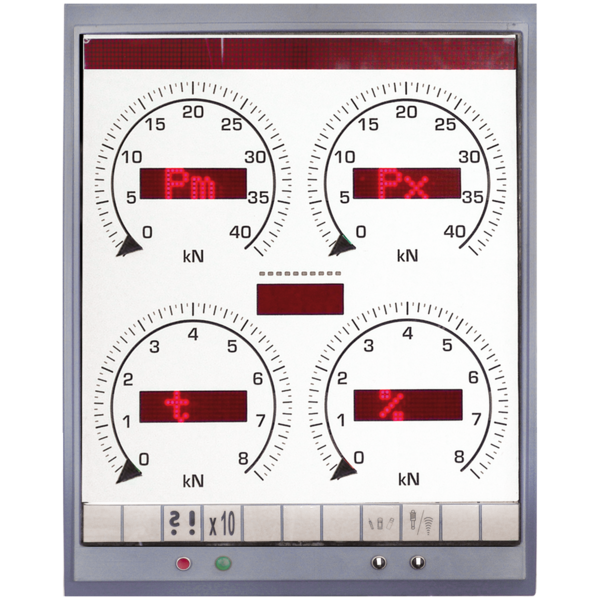

  • Multi-analogue display with four pointer indicators

(Diameter: 4 x 350 mm)
- Measured value display0 - 8 kN / 0 - 40 kN

  • Display option for:
    • Brake tester
    • Wheel arch tester
    • Shock absorption tester
  • Difference display (three-digit + LED bar) for displaying:
    • Difference in braking force in %
    • Difference in shock absorption in %
    • Deviation in wheel arch in m/km
    • Results evaluation using additional coloured LED bars
    • User guidance using alphanumerical display
  • Program control using 32-bit microprocessor electronics

enables thefinest resolution for the measurement results
Dimensions of display (H x W x D)1060 x 870 x 300 mm


  • Comprehensive package of functions for professional testing, such as:
    • Delayed automatic switch-on after entering the tester
    • Automatic start-up monitoring supplied as standard to avoid tyre damage
    • Automatic slip cut-off with pointer stop and automatic restart already included as standard
    • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
    • Automatic cut-off after exiting the tester
    • Single-wheel switching for differentiated consideration of each wheel


  • Robust and long-lasting design due to:
    • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
    • Roller surface welded
    • Optional, free plastic coating on the test rollers
    • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
    • Lockable main switch
    • RS 232 interface connection
    • Splash-proof motors work reliably, even under high-stress environmental influences
    • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
    • Internationally recognised TÜV certificate as per issue 149/2021 of the Verkehrsblatt [German Transport Gazette]
    • Star-delta circuit to avoid high inrush currents
    • RS 2 roller set design with space-saving motor integration underneath the test rollers
    • Rear roller elevated by 40 mm - guarantees highly precise measurement results, particularly for trailer axles.
    • Self-supporting divided roller set
    • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016


Scope of delivery:

  • Analogue display with four pointer indicators and an integrated switch cabinet
  • MBT 4000 RS 2 roller set with preparation for weighing equipment
  • Two VARIODATA digital displays
  • RECO 1 remote control

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Axle load (can be driven over)13000 kg
Drive power2 x 9 kW
Test speed2.3 km/h
Roller length1000 mm
Roller diameter202 mm
Roller axle distance430 mm
gG fuse50 A
Power supply3/N/PE 400 V 50 Hz
