MBT 3250 EUROSYSTEM VP 410125

product details / scope of delivery

Description of the MBT 3250 EUROSYSTEM:

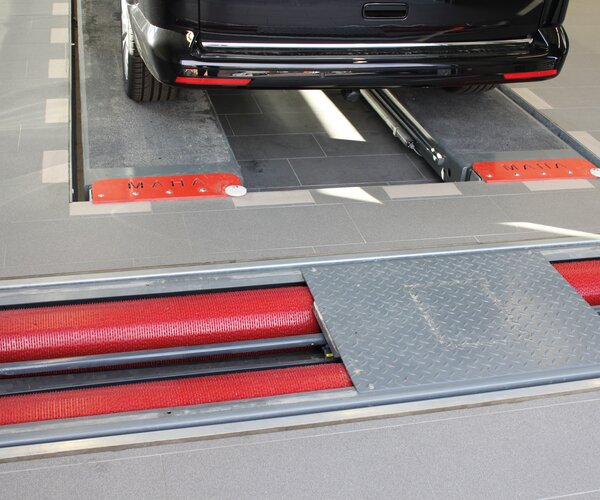

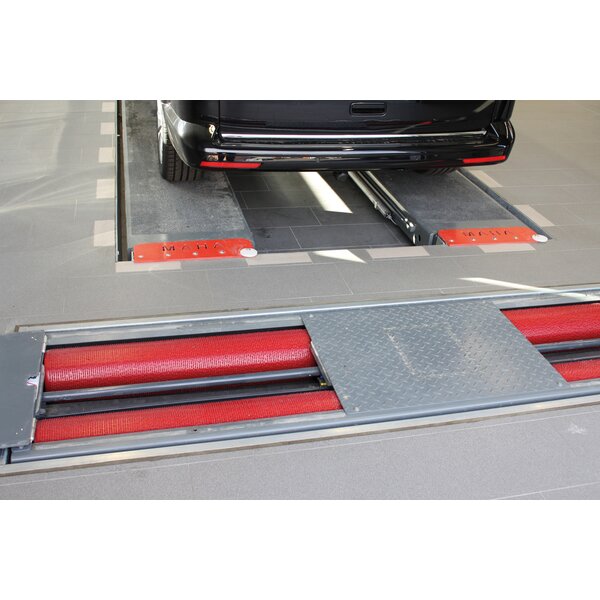

Test lane-enabled roller brake tester for cars and
particularly vans and light lorries with an axle load of up
to 8.0 t

• Thanks to 8 t axle load and 2800 mm track width, particularly suitable for vans and light lorries
• As a test speed of 5 km/h is supplied as standard, both cars and light lorries can be tested in compliance with legislation.
• Visualisation of measured values, difference and graphics on monitor display
• Test lane-enabled thanks to possibility of connecting MSD 3000 / MINC / TPS EURO floor units

• Comprehensive package of functions for professional testing, such as:
  • Delayed automatic switch-on after entering the tester
  • Automatic start-up monitoring supplied as standard to avoid tyre damage
  • Automatic slip cut-off with pointer stop and automatic restart already included as standard
  • Automatic exiting aid supplied as standard to enable thedriven axles to conveniently exit the tester
  • Automatic cut-off after exiting the tester
  • Single-wheel switching for differentiated consideration of each wheel

• Intuitive-to-use EUROSYSTEM software for the highest expert standards with:
  • Round instrument display for the braking forces Additional displays for difference, decelerations, and optional scale and force sensors.
  • Integrated user guidance with easy-to-understand user instructions
  • Continuous and graphic real-time display of all the measured values using the reference values time and force.
  • EUROSYSTEM supplied as standard with integrated SQL Server Express database
  • Multi-user capability option for productive allocation of the individual work packages to several workstations.
  • Easy to connect additional devices such as MLT 3000 to EUROSYSTEM
  • Configurable test report with all the measurement and evaluation results ofthe tests performed on a single print-out

• Robust and long-lasting design due to:
  • Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
  • Roller surface welded
  • Optional, free plastic coating on the test rollers
  • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
  • Lockable main switch
  • RS 232 interface connection
  • Splash-proof motors work reliably, even under high-stress environmental influences
  • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life forthe entire tester
  • Internationally recognised TÜV certificate as per issue 149/2021 of the Verkehrsblatt (German Transport Gazette)
  • Star-delta circuit to avoid high inrush currents
  • Self-supporting closed roller set
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016

Description of the MCD 2000 communication desk:

• Robust and multifunctional metal casing
• Integrated switch cabinet for housing electronic components
• Lockable drawer for keypad and PC mouse, plus storage compartment for small items of equipment
• VESA standard bracket for holding the all-in-one PC or PC monitor
• Can be extended with optional PC storage compartment or side shelves
• Varnished withhigh-quality powder coating: window grey, RAL 7040 (switch cabinet) anthracite grey, RAL 7016 (side faces)

Scope of delivery:

• MCD 2000 communication desk with integrated switch cabinet
• MBT 3000 roller set with preparation for weighing equipment
