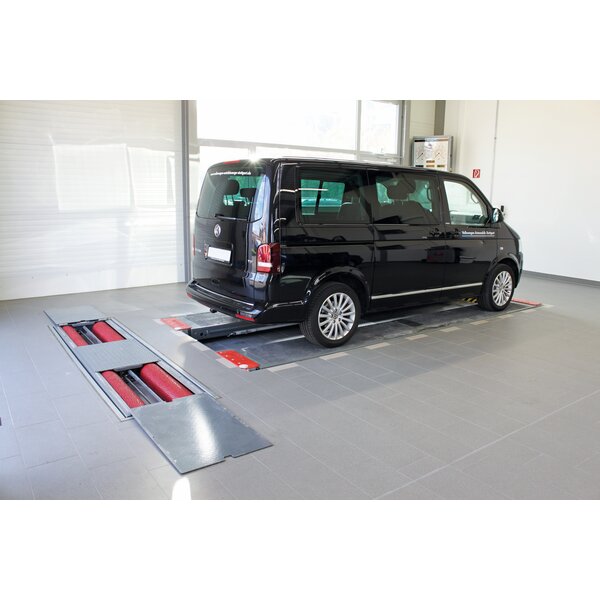

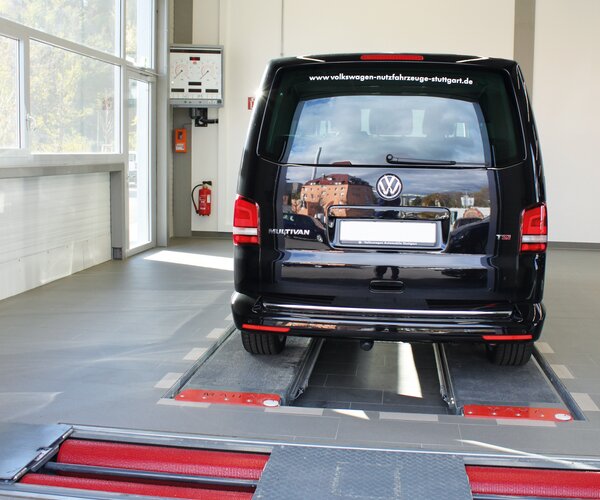

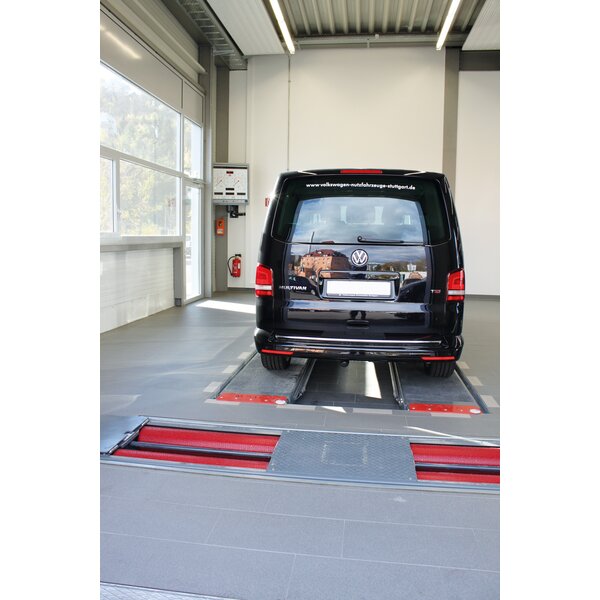

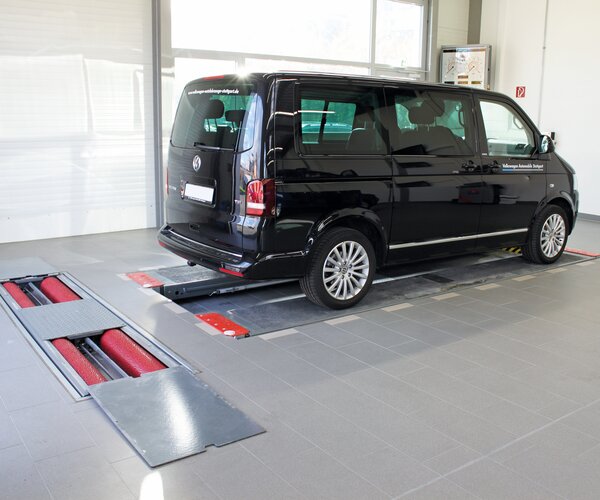

MBT 3200 LON VP 410127

product details / scope of delivery

Description of the MBT 3200 LON:
Test lane-enabled roller brake tester with Multi-analogue
display particularly for cars, vans and light lorries with an
axle load of up to 8.0 t

• Thanks to 8 t axle load and 2800 mm track width, particularly suitable for vans and light lorries
• As a test speed of 5 km/h is supplied as standard, both cars and light lorries can be tested in compliance with legislation.
• Multi-analogue display with two pointer indicators (Diameter: 2 x 350 mm) and an integrated switch and electrical cabinet Display option for:
  • Brake tester
  • Wheel arch tester
  • Shock absorption tester
• Difference display (three-digit + LED bar) for evaluating:
  • Difference in braking force
  • Difference in shock absorption
  • Deviation in wheel arch
• Program control using 32-bit microprocessor electronics

• Comprehensive package of functions for professional testing, such as:
  • Delayed automatic switch-on after entering the tester
  • Automatic start-up monitoring supplied as standard to avoid tyre damage
  • Automatic slip cut-off with pointer stop and automatic restart already included as standard
  • Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
  • Automatic cut-off after exiting thetester
  • Single-wheel switching for differentiated consideration of each wheel

• Robust and long-lasting design due to:
  • Electronic, temperature-compensated strain gauge system for highly precise measurement results underall environmental conditions
  • Roller surface welded
  • Optional, free plastic coating on the test rollers
  • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
  • Lockable main switch
  • RS 232 interface connection
  • Splash-proof motors work reliably, even under high-stress environmental influences
  • Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfortand guarantee a long service life for the entire tester
  • Internationally recognised TÜV certificate as per issue 149/2021 of the Verkehrsblatt (German Transport Gazette)
  • Star-delta circuit to avoid high inrush currents
  • Self-supporting closed roller set
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016

Scope of delivery:

• Analogue display with two pointer indicators and an integrated switch cabinet
• MBT 3000 roller set withpreparation for weighing equipment
