product details / scope of delivery
Description:
Digital roller brake tester for cars and vans
up to 3.5 t axle load with 2 x 3 kW drive motors
and a max. track width of 2,500 mm
Particularly suitable as stand-alone tester
or as part of car reception and diagnostic testlanes
for larger vehicles such as SUVs, off-roaders or vans
- Features:
- Real slip monitoring and automatic start-up delay as standard
- Tyre-saving thanks to integrated automatic start-up monitoring
- Automatic slip switch-off with pointer stop and automatic restart
- Automatic aid for comfortable vehicle exit with driven axles
- Automatic switch-off after vehicle exit
- Electronic, temperature compensated (neutral) strain gauge system
- Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)
- Further product advantages - for details see Sales Handbook:
- A sturdy and solid design
- Interface module in the floor assembly
- Secure and digital data transmission
- Modular control box set-up
- Multi-flexible display possibilities
- Simple start-up
- Simple maintenance and service
- Safe operation
- Optimised calibration and adjustment
- Integrated and expandable software and/or interfaces
Configuration:
- Roller set model C W220
- Self-supporting, encased roller set (Compact)
- Continuously height-adjustable (245 - 300 mm)
- High-quality powder coating: anthracite grey, RAL 7016
Scope of delivery:

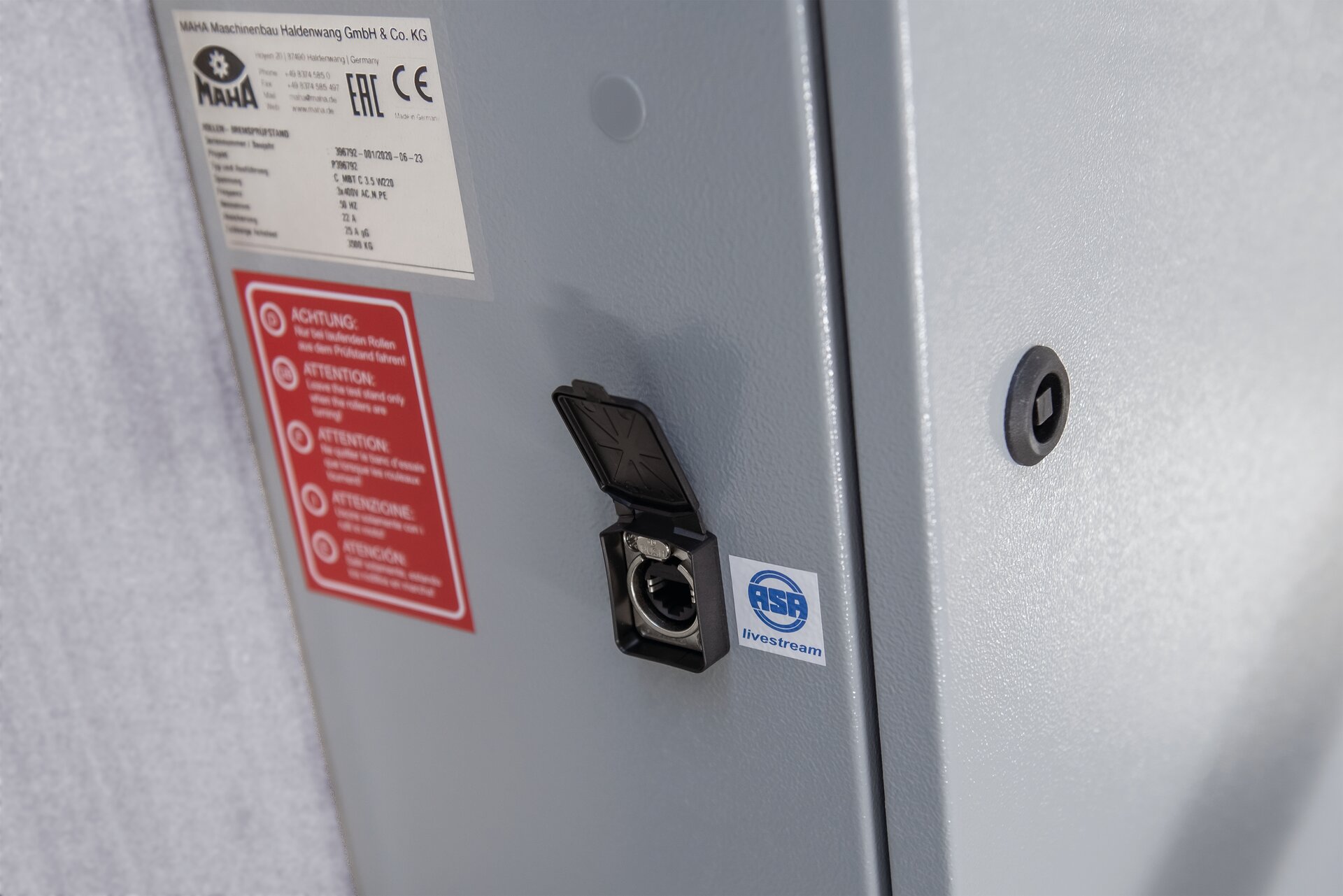

- Control box with integrated control unit
- Roller set C_MBT C 3.5 W250 with integrated interface module
- Pluggable cable harness 12 m
Technical Data
Technical data:
Axle load (traversable) | 3500 kg |
Min. track | 780 mm |
Max. track | 2500 mm |
Drive power | 2 x 3 kW |
Test speed | 5 km/h |
Measured value display | 0-8 kN |
Roller diameter | 202 mm |
Roller axle distance | 400 mm |
gG Fuse | 25 A |
Power supply | 3/N/PE 400 V 50 Hz |
Dimensions of roller set (L x W x H) | 2644 x 680 x 280 mm |
